उत्पाद विवरण:
|
| बिजली उत्पादन: | +20 डीबीएम तक | ऑप्टिकल कनेक्टर: | एफसी/एपीसी या एफसी/यूपीसी |
|---|---|---|---|
| बैंडविड्थ @ 3 डीबी: | <0.1 एनएम | बैंडविड्थ @ 20 डीबी: | ＜ 0.5 एनएम |
| एसएमएसआर: | ＞ 45 डीबी | प्रचालन तापमान: | 0 ~ +40 ℃ |
| प्रमुखता देना: | tunable laser source 20 DBm,tunable laser source polarization extinction,tunable laser source high output power |
||

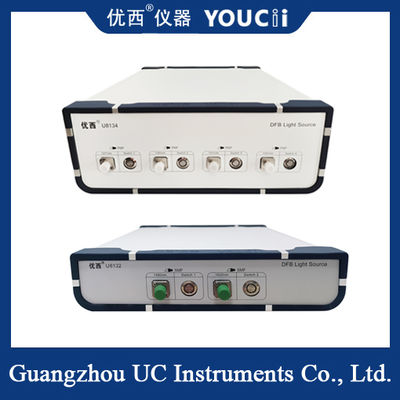

High-power DFB laser light sources are advanced optical instruments used for generating precise and reliable optical signals in various testing and research applications. With its outstanding performance and multi-functionality, this tunable laser source offers excellent control and flexibility for the demanding optical testing requirements.
Main product attributes:
Line width: Less than 0.1 nm
Output power: Up to + 20dbm
Optical connectors: FC/APC or FC/UPC
Dimensions: 285 mm W, 105 mm H, 360 mm D
The high-power light source is designed to provide precise and stable light signals, with a line width of less than 0.1nm, ensuring high precision and reliability in various test scenarios. With an impressive output power of up to +20 dBm, this laser source provides sufficient signal strength for demanding applications, enabling efficient test and measurement processes.
Specification
| Model # | U8134H-20 |
| Device Package | Butterfly |
| Optional Wavelength | 1270, 1290, 1310, 1330 nm (Other wavelengths are optional) |
| Wavelength Accuracy | ± 2 nm |
| Output Power | 100mW (20dBm) |
| Connector Type | FC/APC (Other Adaptor Can Be Customized) |
| Bandwidth@3 dB | ＜ 0.1 nm |
| Bandwidth@20 dB | ＜0.5 nm |
|
Output Power Stability within 15mins |
±0.01 dB |
|
Output Power Stability within 8 hrs |
±0. 05 dB |
| SMSR | ＞ 45 dB |
| Operation Temperature | 0～ +40 ℃ |
| Storage Temperature | -30～+80 ℃ |
| Dimensions | 285 mm W, 105 mm H, 360 mm D |
| Weight | 5.0 kg |
| Linewidth | < 0.1 Nm |
| Polarization Extinction Ratio | > 20 DB |
| Modulation Depth | Up To 100% |
| Dimension | 190 X 140 X 50 Mm |
| Control Interface | USB/RS232/GPIB/Analog |
| Modulation Frequency | Up To 10 KHz |
| Output Power | Up To +20 DBm |
| Optical Connector | FC/APC |
Whether used in research laboratories, educational institutions, or industrial Settings, high-power laser sources offer unparalleled versatility and precise optical signal generation. Its user-friendly interface and intuitive controls make it easy to operate and efficient for testing, making it a valuable asset for engineers, researchers and technicians engaged in optical projects.
In conclusion, high-power light sources combine cutting-edge technology with reliable performance to meet the demanding requirements of optical testing and research. With its outstanding functions and precise output characteristics, this laser source is a universal and indispensable tool for a wide range of optical applications, ensuring accurate and reliable results in various testing scenarios.
